SPH-EVO107DAB

10.1″ WIRELESS AV RECEIVER





• 10.1” HD Capacitive “Floating/Separable” Touch Panel Screen
• Apple CarPlay™ (Wireless or Wired Connection) Including “Split Screen” Viewing Option
• Android Auto™ (Wireless or Wired Connection)
• iDataLink Maestro Compatible
• Luminous Bar
• DAB Tuner
• Customizable Shortcut Keys
• Bluetooth (Dual Phone)
• Dual Camera Inputs
• WebLink® Cast for Smartphone Mirroring (iOS and Android Devices)

$1,750.00

The new evolution of Pioneer AV is here with the Pioneer SPH-EVO107DAB!

This stunning design supports a massive 10.1″ HD (1,280 x 720 pixel) capacitive screen with capacitive keys incorporated, including our new “Direct” key to quickly access the Apple CarPlay or Android Auto GUI. The inclusion of convenient hard keys on top for volume and mute control also helps make life that little easier. Thanks to our highly successful “Floating/Separable” screen design, you have the ability to mount the unit in a wide selection of positions to ensure the perfect look for your vehicle. Also supporting our “Light and Dark” GUI options and new high proximity panel construction, helps to ensure not just the best picture quality but also a wide viewing angle is achieved. The new Pioneer GUI also supports customizable shortcut keys allowing quick access to key functions of the unit.

Our new “Luminous Bar” not only looks great, but can also assist in making your drive a little safer!

It’s not just about looks either! With professional engineering, we closely examined the key audio components to ensure premium sound quality was achieved. Additionally, the inclusion of our “Advanced Sound Retriever” feature ensures improved quality of compressed audio playback.

Supporting a wide selection of entertainment and information services including:

  • Apple CarPlay™ (wireless or cable connection) including “Split screen” viewing option
  • Android Auto™ (wireless or cable connection)
  • iDataLink Maestro compatible(*)
  • Luminous Bar
  • WebLink® 3.0
  • WebLink® Cast for compatible iOS and Android™ Handsets
  • Spotify(#)
  • Full HD video playback from USB***
  • Bluetooth (Dual Phone##)
  • AM/FM and DAB Tuners and more!

With this much choice you will never want to leave your car!

(*) Only available in Australia & New Zealand. iDataLink Maestro interface module required. Sold separately.

(**) Access to the Pioneer PxLink app and mobile data required.

(***) Playback capability for various content may change.

(#) Spotify controlled via Apple CarPlay™ or Android Auto™.

(##) Connection conditions apply

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

BIG 10.1″ HD DISPLAY

The new Pioneer 10.1″ HD (1,280 x 720 pixels) capacitive screen is able to produce high-definition images. Utilising a high brightness display and high proximity panel construction allows for a bright easy to read display with wide viewing angle.

LUMINOUS BAR

The new Pioneer “Luminous Bar” provides users with:

  • An intuitive turn guidance support when using select navigation apps in Apple CarPlay or Android Auto
  • A customisable ambient light to match your key lighting
  • Notification of activation of voice assistant when using Apple CarPlay or Android Auto

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events .

Luminous Bar turn guidance support not available on all navigation apps. Please refer to your nearest authorised Pioneer dealer for more information.



PIONEER PREMIUM QUALITY SOUND

Pioneer continues it’s ongoing commitment to finding new design methods, part sourcing and industry leading technologies to ensure an in-car experience like no other. From premium capacitors and a full-custom high-performance 48-bit dual-core DSP to our Advanced Sound Retriever and time alignment technology, we are sure you will be impressed!

APPLE CARPLAY™ (WIRELESS OR WIRED CONNECTION)

The best iPhone® experience on four wheels; Apple CarPlay™ is a smarter, safer way to use your iPhone® while you drive. You can get directions, make calls, send and receive messages, and enjoy your favourite music. You can even connect wirelessly to stay focused on the road.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

ANDROID AUTO™ (WIRELESS OR WIRED CONNECTION)

Enjoy seamless connectivity and control of your compatible Android™ smartphone in the car. Android Auto is a simpler, safer way to use your phone in the car.  Get all your favourite maps, media, and messaging apps on your car display.

To use Android Auto on your car display, you’ll need an Android phone running Android 8 or higher, an active data plan, and the Android Auto app.

To wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan. You can check which smartphones are compatible at g.co/androidauto/requirements.

Some features and devices may not be available in all countries. Subject to availability.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

IDATALINK MAESTRO COMPATIBLE

Keep your factory features and expand your level of in-vehicle connectivity with Pioneer receivers and iDatalink Maestro RR or RR2 integration interface. When your SPH-EVO107DAB receiver is installed in a compatible vehicle using the iDatalink Maestro RR or RR2 integration interface# (sold separately), you’ll be able to enjoy the performance and features of the SPH-EVO107DAB receiver plus touchscreen control over key factory audio features.

The SPH-EVO107DAB supports factory functions via the iDatalink Maestro RR or RR2 integration interface including, Steering Wheel Controls, Media Player (including the factory AUX-in and USB ports), Hands-Free Telephone, Voice Commands, Secondary Display Support, Visual parking assistance, HVAC 1 or 2 compatible, Multi-camera control*……and more! For more information on iDataLink Maestro products please follow the following link: iDataLink Maestro Australia

*Images will vary dependant on AV receiver, camera system and vehicle.

# iDataLink Maestro interface sold separately.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

SPLIT SCREEN FOR APPLE CARPLAY

You can now display Apple CarPlay and the receiver’s menu at the same time on one screen. This function is useful such as when you want to operate the music (i.e. Radio or USB) while looking at the map screen.



Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.





IMPROVED BLUETOOTH AND WI-FI CONNECTIVITY

Improved Bluetooth and Wi-Fi connectivity have been achieved to provide users with clearer hands-free calling, improved sound quality when streaming music with Apple CarPlay or Android Auto as well as ensuring a more stable connection.

Apple CarPlay is a trademark of Apple Inc. registered in the U.S. and other countries.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

“FLOATING/SEPARABLE” DISPLAY

The design of the SPH-EVO107DAB structure is unique, combining a universal 1-DIN size chassis with a large 10.1-inch display that can be configured for installation either as a floating mount type applicable to most vehicles1 or as an in-dash flush mount type in specific compatible vehicles2.  When installed as a floating mount type, the screen offers horizontal, vertical and tilt adjustability to ensure the best fit and usability in the vehicle’s dash*.

* In-dash type flush mount capability varies by vehicle and/or third-party installation kit availability, sold separately. Custom mount not provided. Limited cable length available.

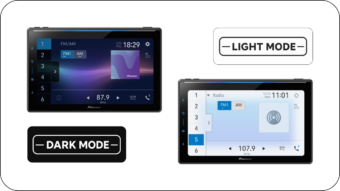

SELECTABLE VIEWING MODES

Light / Dark mode for enhanced visibility – By changing the colours of the UI background and text, visibility and legibility can be optimized based on the ambient light conditions, such as day or night. Light mode is intended to reduce the effect of ambient light reflections in bright conditions (daytime), while Dark mode may help to reduce screen glare in dark conditions (night time).  Light / Dark mode can be selected manually or set to automatically correspond to the time of day and/or illumination settings of the vehicle*.



*Requires connection to a compatible vehicle illumination circuit of the vehicle during installation.  Third-party installation adapter or interface may be required, sold separately.

WEBLINK® & WEBLINK® CAST

WebLink® 3.0 enables a compatible smartphone with the WebLink Host app installed to display and control compatible third-party applications from the in-dash receiver touchscreen4.  WebLink compatible apps provide services such as turn-by-turn navigation (i.e. Waze®), point of interest information and reviews, restaurant reservations, music entertainment, and more5. WebLink enables this Pioneer receiver to deliver a modern infotainment system.

Additionally, with the built-in WebLink® Host application and a USB connection, drivers can also use the WebLink® Cast feature to mirror and interact with their iOS or Android smartphone’s screen on the receivers’ displays and access virtually all the same powerful navigation, communication, productivity and entertainment apps on a bigger screen and driver-friendly format.

For more information please follow the link: WebLink

The compatible smartphone must be connected to a compatible Pioneer receiver via USB and Bluetooth simultaneously to enable full WebLink functionality.

Certain apps may restrict some functions, such as video and music playback.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

WebLink® is a registered trademarks of Abalta Technologies, Inc. WebLink® Cast is a trademark of Abalta Technologies, Inc.

Yelp, Yelp logo and related marks are registered trademarks for Yelp.

Waze® is a registered trademark of Google LLC.

PxLink APP

With the new Pioneer “PxLink” smartphone app users can customize the display on their compatible multimedia receiver including adding your own background image, perform OTA (Over The Air) firmware updates, customise “Shortcut” key layout, other App launching as well as control you compatible AV receiver from your smartphone*. Pioneer is putting the control in your hands!

*Access to the Pioneer PxLink app and mobile data required.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

2 x PHONE FULL-TIME BLUETOOTH CONNECTION*

You can now simultaneously connect and control 2 x smartphones via Bluetooth. The auto connection function automatically pairs the two phone so incoming calls can be picked up by either of the paired phones. No more having to pair and un-pair devices. Bluetooth Audio Streaming (A2DP, AVRCP 1.6) makes it possible to display information embedded in songs.

* Connection conditions apply.

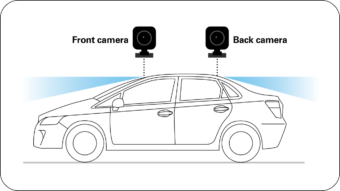

DUAL REVERSE CAMERA INPUTS

Reversing can be a stressful experience. The dual camera inputs allow you to connect a reverse camera as well an optional camera for improved safety (visibility of hazards) and peace of mind. Particularly helpful when parking your vehicle or towing.

WARRANTY

When you buy a Pioneer product, you’re not only purchasing the very you are buying peace of mind. All products listed come with a 12 month manufacturer’s warranty; except brand new Pioneer AVIC products, which come with a 3 Year Warranty. Any warranty repair work should be performed by a Pioneer Authorised Service Centre warranty.

We do not offer an extended manufacturer warranty.

If a product has been delivered to you and you have opened the original product packaging then you have agreed to be bound by these terms and conditions. Returns for refunds will only be accepted within 14 days of receipt of goods. Returned goods must be in their original condition. Shipping and handling costs are not refundable. A restocking fee may apply.

Where the product is not returned within 14 days, Pioneer reserves the right not to accept return of the product, except where the product is under manufacturer’s warranty and you can provide evidence that the product is faulty.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

All products sold on the Pioneer Australia website are brand new. All products include a manufacturer’s warranty.

SUPPORT

  • General Enquiries – 1800 988 268
  • Sales Enquiries – 1800 060 852
  • Product Tech Support – 1800 672 102
  • Spare Parts – 1800 331 763
  • Service & Repairs – 1800 188 397

You can register your Pioneer product by joining our consumer loyalty club – Backstage Pass.
By doing so, Pioneer Australia can then alert you to any news/information regarding your purchase, including firmware or software updates. Moreover, you are then eligible to receive exclusive offers and invitations from Pioneer.

All the latest firmware/software for every Pioneer product can be located on the relevant website product page, under the tab FIRMWARE&SOFTWARE. Alternatively, you can search via the SUPPORT section on this website.

BUYING DIRECT

If you purchase directly from the Pioneer Australia website, you are entitled to FREE SHIPPING within Australia – all states and territories.

All purchases are usually delivered via Aussie Air Express; leaving our Melbourne warehouse within 2 working days of receipt of your order. Our sales team processes orders between 9am – 5pm weekdays. Once stock leaves our warehouse, delivery ETA is:

Melbourne – Overnight / VIC regional – 2 days
Sydney/ACT – Overnight / NSW regional – 2 days
Brisbane – Overnight / QLD regional – 2 days
Adelaide – Overnight / SA regional – 2 days
Perth – Overnight / WA regional – 2 – 4 days
Darwin – Overnight / NT Other – 2-4 days

All online orders are despatched from our national warehouse in Melbourne.

You will receive an email notification when your order has been shipped and is on its way to you.

No. All online purchases from the Pioneer Australia website will be delivered directly to you.

Show Differences

Display
Screen Size10.1"
ResolutionHD (1280 x 720)
TouchscreenCapacitive
LED BacklightYes
Colour Customisation5 Display & 112 Key Colours
Bluetooth
Built-in BluetoothYes Ver. 5.2
Dual Phone ConnectionYes
Hands-Free Profile (HFP)Yes
Audio/Video Remote Control Profile (AVRCP)Yes
Advanced Audio Distribution Profile (A2DP)Yes
Serial Port Profile (SPP)Yes
Smartphone Pairing Memory5 Devices
Tuner
AM/FM TunerYes
DAB+ TunerYes
Presets18 FM, 6 AM, 18 DAB
Best Station Memory (BSM)Yes
Local Seek TuningYes
RDSYes
Smartphone Integration
Apple CarPlay™Yes (Cable or Wireless) Inc Split Screen Function
Android Auto™Yes (Cable or Wireless)
Alexa Built InNo
Smartphone AppPxLink (iOS & Android)
Spotify® ControlYes (via CarPlay / Android Auto)
WebLink®Yes Ver. 3.0
Live InformationNo
Siri® Eyes FreeiPhone Only
Web BrowserNo
Digital Media Playback
CD/CD-R/CD-RW PlaybackNo
DVD/DVD-R/RW/DVD-Video PlaybackNo
MP3 Audio PlaybackUSB
WMA Audio PlaybackUSB
AAC Audio PlaybackUSB
WAV Audio PlaybackUSB
FLAC Audio PlaybackUSB
MPEG-4 Video PlaybackUSB
DivX Video PlaybackNo
WMV Video PlaybackUSB
JPEG Photo Slideshow ViewerUSB
Full HD Video PlaybackUSB
Audio
Hi-Res Audio CertifiedNo
RCA Pre-outs3 pair 4v (front/rear/subwoofer)
Built-in AmplifierMOSFET 4 x 50W
Auto EQ & Time Alignment (CD-MC20 required)No
Specialized Audio PartsYes
D/A Converter24-bit
Crossover NetworkHPF/LPF
3-Way Audio Network ModeYes
Subwoofer ControlYes
Advanced Sound RetrieverYes
Manual Time AlignmentYes
Equalizer13 Band Graphic EQ
Expandability
iDataLink MaestroYes - Sold Separately
Wi-Fi ConnectivityYes
USBSingle Rear Type-A
AUXRear (Audio/video)
Reverse Camera InputYes (Dual Camera)
Parking Assist GuidelinesYes
Wired Remote InputYes (Learning)
HDMIYes (Type-A)
Composite Video OutputYes
General
Remote ControlNo
Warranty12 Month
Chassis Size1 DIN (156mm Depth)
